0.3, 0.5, 1, 1.5, 2, 3, 4, 5kg Or Customized Single Point Load Cell
1. Descriptions
0.3, 0.5, 1, 1.5, 2, 3, 4, 5kg Or Customized Single Point Load Cell is a model of our brand RJ-Series, Single Point Load Cellcan be used to measure weight 0.3kg, 0.5kg, 1kg, 1.5kg, 2kg, 3kg, 4kg, 5kg or customized capacity, its material we use Alloy steel, we can also customized material.
Single Point Load Cell Sensitivity is 1.0±10%mV/V (0.3kg, 0.5kg), 2.0±10%mV/V (1~5kg), the Zero Balance is ±0.02mV/V.
Single Point Load Cell creep(30min) ≤0.0166%F.S.. The non-linearity ≤0.015%F.S.. Hysteresis ≤0.015%F.S.. Repeatablity ≤0.015%F.S..
Single Point Load Cell Input impedance is 300±40Ω, the output impedance is 300±40Ω.
Single Point Load Cell Temp.effect on output is 0.017%F.S./10ºC, Temp.effect on zero is 0.02%F.S./10ºC.
Single Point Load Cell Insulation Resistance ≥5000MΩ/100V(DV).
Single Point Load Cell Recommended Excitation is 5-15V, the Maximum Excitation is 20V.
Single Point Load Cell Compensated Temp Range is -10~40ºC, the Operating Temp Range is -25~70ºC.
Single Point Load Cell safe overload is 150%F.S.. The ultimate overload is 200%F.S..
The cable size is ∅4*3000mm.
The weight is 0.2kg or customized.
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 0.3, 0.5, 1, 1.5, 2, 3, 4, 5kg |
| Rated output | 1.0±10%mV/V (0.3kg, 0.5kg), 2.0±10%mV/V (1~5kg) or customized |
| Zero balance | ±0.02mV/V or customized |
| Creep(30min) | ≤0.0166%F.S. or customized |
| Non-linearity | ≤0.015%F.S. or customized |
| Hysteresis | ≤0.015%F.S. or customized |
| Repeatability | ≤0.015%F.S. or customized |
| Input resistance | 300±40Ω |
| Output resistance | 300±40Ω |
| Temp.effect on output | 0.017%F.S./10 ºC |
| Temp.effect on zero | 0.02%F.S./10 ºC |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40 ºC |
| Operating temp range | -25~70 ºC |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | 4x3000mm or customized |
| Weight | 0.2kg or customized |
| Material | Alloy steel or customized |

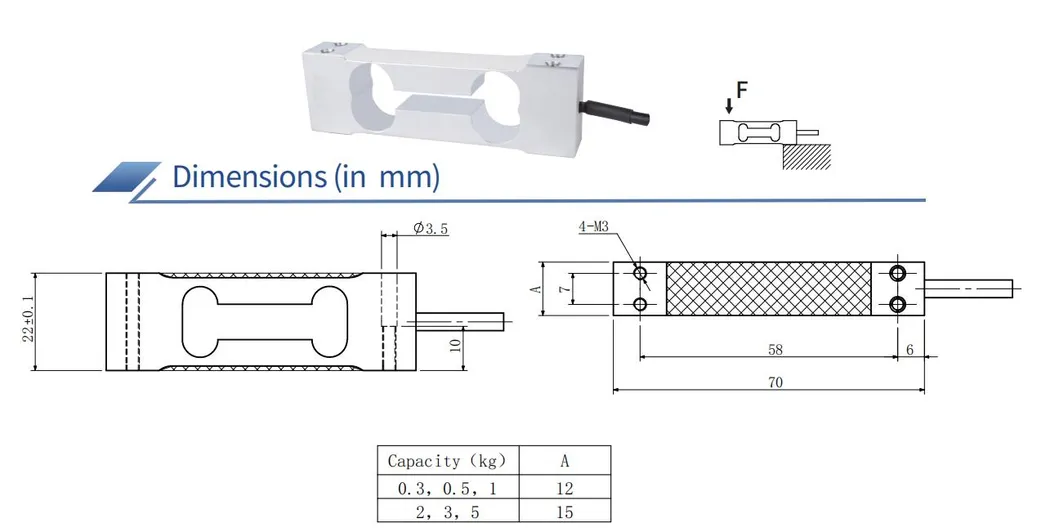

3. Dimension
Need to be customized
4. Application
0.3kg, 0.5kg, 1kg, 1.5kg, 2kg, 3kg, 4kg, 5kg or customized Single Point Weight Sensor can be used for weighing in industrial automation measurement control systems.
Used for electronic belt scales, silo scales, batching scales, electromechanical combination scales, hook scales, and other force measurement and control, and computer-controlled batching.
