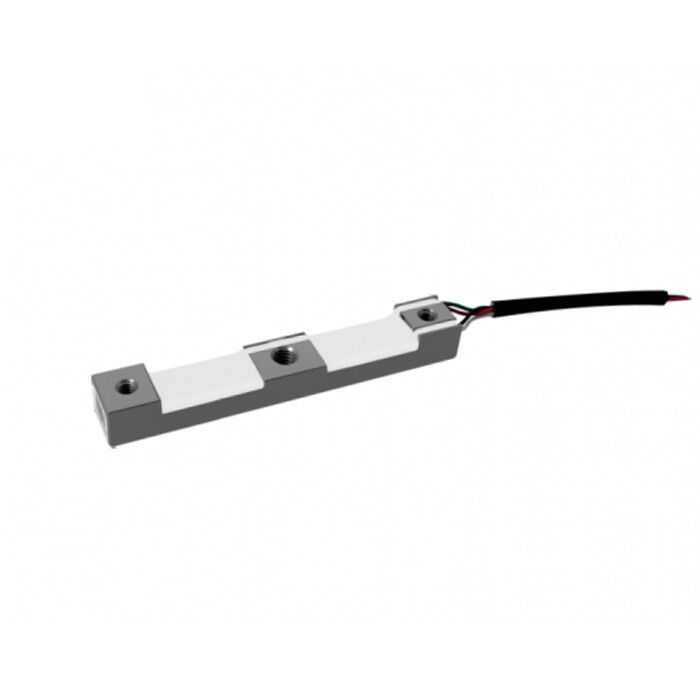

Aluminium Alloy Compression Load Cell
The NY29 is aluminium alloy material load cell,the surface is anodized and coated with white glue that protects sensors against water and erosion.The load cell is high precision that can apply for multidirection force measuring systems,flat weighing and force measurement in confined spaces.
Key Feature:
Aluminium alloy
Capacity: 60kg
Precision: 0.1%R.O.
Protection class: IP65
Rated Output : 1.0 mV/V±15%
Usage & Application:
Mainly used in flat weighing and force measurement in confined spaces.
Dimension:
Specification:
| Rated Capacities | 60kg |
| Rated Output | 1.0 mV/V±15% |
| Zero Balance | ±0.0500mV/V |
| Non-linearity | 0.1 %R.O. |
| Hysteresis | 0.1 %R.O. |
| Repeatability | 0.1 %R.O. |
| 30mins Creep | 0.1 %R.O. |
| 30mins Return | 0.1 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Input Impedance | 1000±10 Ω |
| Output Impedance | 1000±10 Ω |
| Insulation Impedance | ≥3000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Aluminum Alloy |
| Protection Class | IP65 |
| Cable | Φ4×0.22m |
| Recommended Platform Size | |
| Mode of Connection | Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
