| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | RUIJIA |
| Chứng nhận: | CE |
| Số mô hình: | RJ |

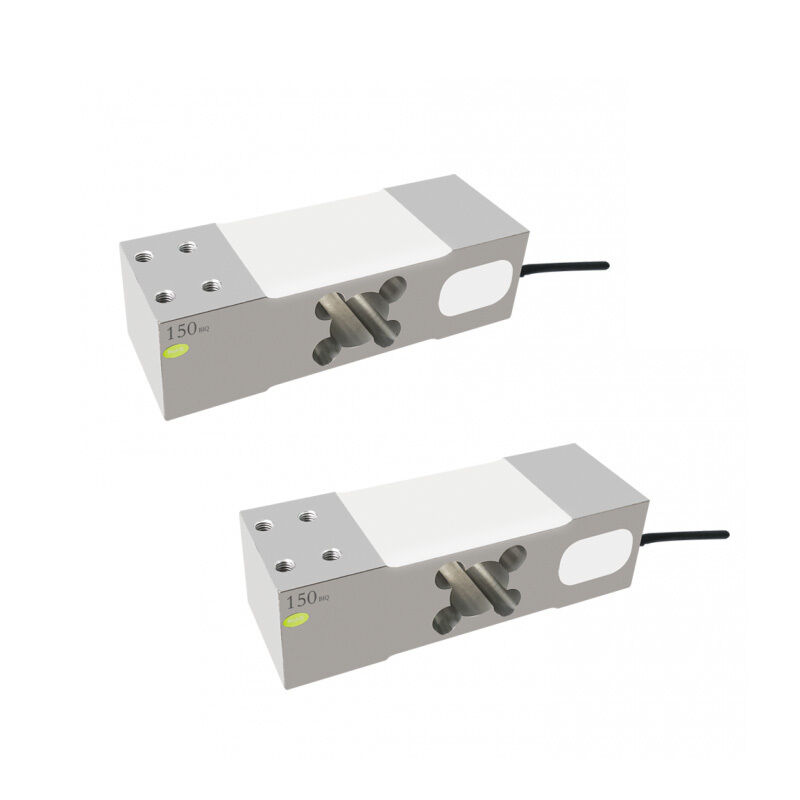

Load cell sensor is a Single Point platform load cell with aluminum alloy construction. The single point weighing sensor delivers highly precise and reliable measuring results even in long-term use.
Key Features:
High profile
Calibrated to national standards
Aluminum alloy construction
Compact Design
Easy to install
Long term, reliable operation
Usage & Applications:
Platform scales
Bench scales
Retail scales
Pricing scales
Counting scales
Dimension:
Specification:
| Rated Capacities | 60,150,300(kg) |
| Rated Output | 1.3 mV/V±10% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02 %R.O. |
| Hysteresis | 0.02 %R.O. |
| Repeatability | 0.02 %R.O. |
| 30mins Creep | 0.02 %R.O. |
| 30mins Return | 0.02 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.002 %R.O./℃ |
| Temperature Effect On Zero | 0.003 %R.O./℃ |
| Input Impedance | 410±15 Ω |
| Output Impedance | 350±5 Ω |
| Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Aluminum Alloy |
| Protection Class | IP66 / IP67 |
| Cable | φ5×2m |
| Recommended Platform Size | 600×600 mm；600×800 mm |
| Mode of Connection | Red(EXC+),Black(EXC-), Green(SIG+),White(SIG-) |
