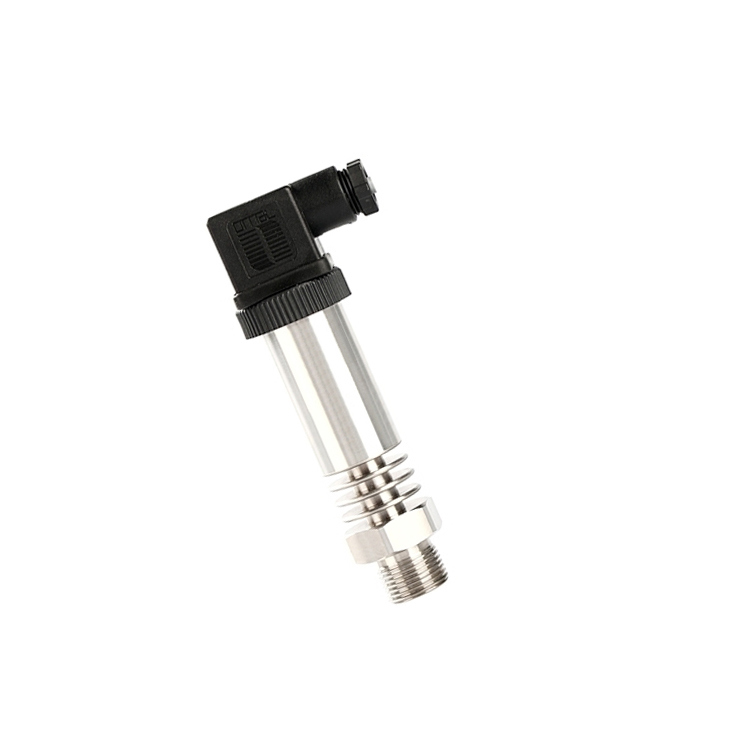

This series of high temperature pressure sensors use a high-performance silicon piezoresistive pressure core as core element. The internal ASI-C-s convert the mV signal into a standard current signal (4-20mA/0-20mA), voltage signal (0-5V/1-5V/0-10V) or RS485. Pressure sensor with stainless steel sealing structure has cooling fins, high anti-vibration and anti-shock performance, measuring range -0.1~100MPa/ -1~1000bar/ -14~14503psi, medium temperature -40~+300℃ (-40~+572℉), for steam/fuel oil/high-temperature liquid pressure measurement.
Overview
Pressure sensor for steam/fuel oil pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485.
Application: Pressure sensor is widely used in process control, aerospace, automotive, medical equipment, HVAC and other fields.
Specification:
| Weight | 0.4kg |
| Measuring range * | -0.1~100MPa (-1~1000bar/-14~14503psi) |
| Pressure type* | Gauge pressure (standard) Contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa) |
| Measure medium | Steam, fuel oil, high-temperature liquid (non-explosion proof area) |
| Power supply * | DC 12V, DC 24V, DC 12-36V |
| Output signal * | 2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485 |
| Accuracy | ±0.5%FS for 4-20mA, 0-10V, RS485; ±1%FS for 0-5V, 1-5V |
| Zero temperature drift | ±0.03%FS/℃ |
| Sensitivity temperature drift | ±0.03%FS/℃ |
| Long term stability | ≤0.2%FS/year |
| Overload pressure | 200%FS |
| Frequency response (-3dB) | 5kHz~650kHz |
| Electrical connection * | DIN connector type, M12 circular connector type, direct lead wire type |
| Thread of pressure connection * | G1/4, G1/2, 1/4NPT, 1/2NPT, M14*1.5, M20*1.5 |
| Response time | ＜10ms |
| Operating temperature | -40~+80℃ (-40~+176℉) |
| Medium temperature | -40~+250℃ (-40~+482℉) |
| Quantity of cooling fins (medium temperature) * | 3 pieces (0-120℃/32~248℉), 5 pieces (0-180℃/32~356℉), 7 pieces (0-250℃/32~482℉) Note: For higher medium temperature (0-300℃/32~572℉), please contact us to customize a cooling pipe kits. |
| Material | Housing: 304 stainless steel, or 316L stainless steel (customizable) Fill fluid: silicon oil Pressure port: 304 stainless steel, or 316L stainless steel (customizable) Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable) |
| Cable length | 2m |
| Protection class | IP65 |
Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.
Pressure sensor dimension drawing (unit: mm):
Pressure sensor wiring diagram:
Pressure sensor installation diagram (unit: mm):
Tips: Accuracy of pressure sensor
Accuracy is an important performance index of pressure sensor, which is an important link on accuracy measurement of whole measuring system. The higher the accuracy of pressure sensor, the more expensive it is. Therefore, as long as the accuracy of pressure sensor can be satisfied the accuracy requirements of the whole measurement system. That will be fine. This allows choosing cheaper and simpler sensors among many ones that serve for the same purpose.
For some special use occasions, it is unable to choose a suitable sensor in the market. So it is necessary to design and manufacture the sensor by oneself. You can contact us Rujia Automation and send us your requirements. We will try our best to produce sensors that can meet your requirements.
