Submersible Hydrostatic Level Transmitter 4-20mA RS485 HART 24VDC

Chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	RJ
Chứng nhận:	CE/POSE
Số mô hình:	RJ

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Hàng hiệu:

Chứng nhận:

CE/POSE

Số mô hình:

Mô tả:

Máy truyền nồng độ lỏng

Loại:

cảm biến mức chất lỏng

Sản lượng:

4-20ma, Hart, rs485

Nguồn năng lượng:

24VDC

Phạm vi:

0 ~ 1m ~ 5m ~ 20mh2o

Nguồn cung cấp điện:

12~36V

Làm nổi bật:

High Light

Làm nổi bật:

submersible hydrostatic level transmitter 4-20mA

water level sensor RS485 HART

hydrostatic pressure transmitter 24VDC

Thông tin giao dịch

Số lượng đặt hàng tối thiểu:

Giá bán:

39-89

chi tiết đóng gói:

Thùng carton hoặc thùng gỗ

Thời gian giao hàng:

5-8 ngày làm việc

Điều khoản thanh toán:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Khả năng cung cấp:

2000 cái/tháng

Mô tả sản phẩm

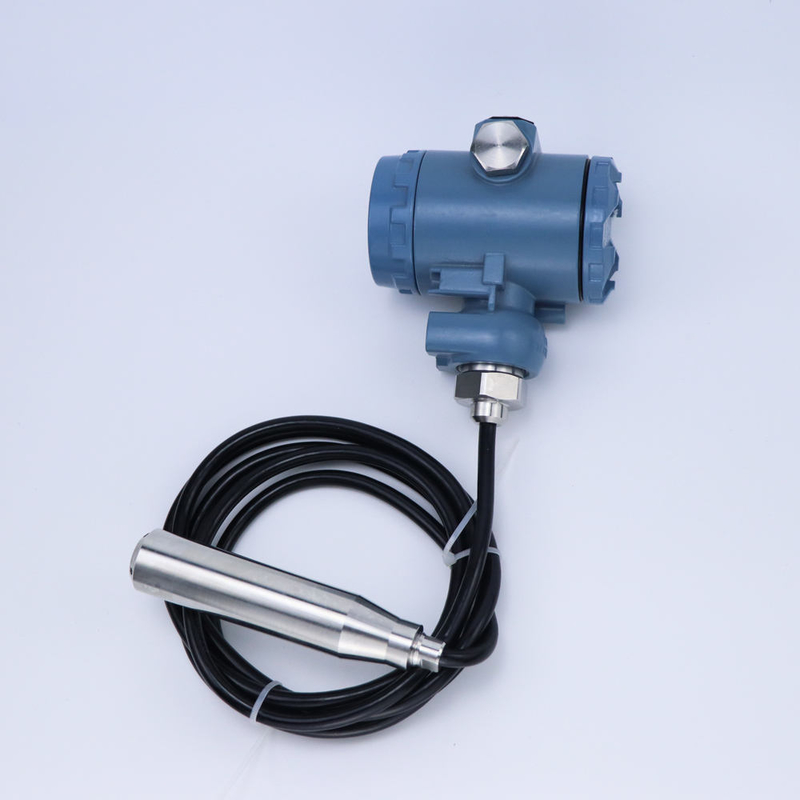

Liquid Water Submersible Hydrostatic Level Transmitter Sensor 4-20mA RS485 HART with Display for Tank

Smart Submersible Level Transmitter precisely measures the static pressure of liquid in relation to its depth using a high-performance piezoresistive diffused silicon pressure sensor. This measurement is then converted into a standard current or voltage output via a signal conditioning circuit, creating a direct linear correlation between the output signal and liquid depth. The device is compact and highly accurate, allowing for easy submersion directly into the liquid to measure the distance from the transmitter’s end to the liquid surf ace. It is ideal for liquid level measurement and control in industries such as petroleum, chemicals, power plants, urban water supply, and hydrological exploration. The RJ Water level sensor has undergone extensive aging and stability testing to ensure reliable perf ormance in harsh outdoor environments. Additionally, it off ers on-site liquid level display and supports zero shift and full-scale span shift adjustments. Both HART and RS485 communication protocols are available.

Submersible Hydrostatic Level Transmitter 4-20mA RS485 HART 24VDC 0

Submersible Hydrostatic Level Transmitter 4-20mA RS485 HART 24VDC 1

Submersible Hydrostatic Level Transmitter 4-20mA RS485 HART 24VDC 2

INSTALLATION TIPS
To measure the level of stationary fl uid in an open container, position the level transmitter vert ically at the bottom of the container and secure the cable connecting the transmitter to the junction box at the container's opening.
For media with higher viscosity (e.g., sewage tanks), a casing or bracket can be installed to ensure the transmitter is properly positioned at the bottom of the container.
When installing outdoors, place the transmitter's terminal box in a well-ventilated, dry area, away from direct sunlight and rain. This helps prevent overheating of the enclosure and protects the internal circuit board from water damage.
INSTALLATION TIPS
1) To measure the water level in fl owing water with signifi cant fl uctuations, insert a steel pipe with an inner diameter of approximately 5 cm into the water channel. Drill several holes, each about Φ5 in diameter, on the side of the pipe opposite the fl ow direction to allow water to enter. Secure the cable and junction box at the pipe's outlet.
2) If the water channel experiences large fluctuations or heavy sediment, install a damping device to filter out sediment, mitigate the eff ects of dynamic pressure and waves, and ensure accurate measurements.

PRODUCT PARAMETERS

item

value

Mounting Type

Thread

Description

Liquid level transmitter

Model Number

RJ

Use

water treatment,peroleum,hydrological

Place of Origin

China

Brand Name

DWEL

Output

4-20mA,HART, RS485

Description

Liquid level transmitter

Power Source

24VDC

Range

0~1m~5m~20mH2O

Power supply

12~36V

Accuracy

0.5%FS,1%FS

Overload pressure

200%FS~300%FS

Response time

<1ms (Up to 90%FS analogue circuit board)

Operating temp.

-20C-85C

Zero temp. coeffi cient

1.5%FS

Span temp. coeffi cient

1.5%FS

Material

Stainless steel for level probe Polyurethane wire for cable
